Linear Bar Wood Vents
Horizontal & Vertical Slats
 |

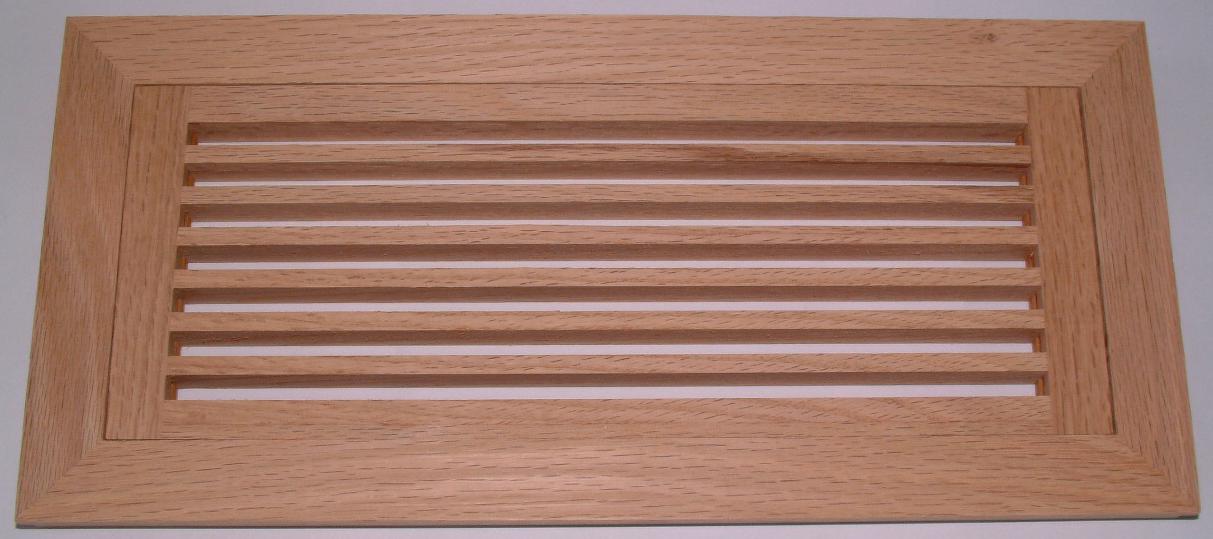

Horizontal
Straight Slat
48" x 36" max (one piece)
48" + would
be continuous
in even sections
|

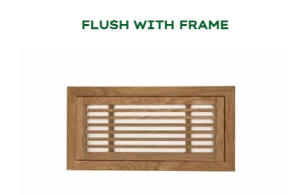

| Shown Flush with Frame |
|
Horizontal Linear Bar Vents are made
differently depending on floor or wall application!
|
FLOOR APPLICATION |
WALL APPLICATION |
- For All Vents with Duct Opening over 10", There is
a vertical divider every 6" of duct opening (approximately, will be broken
into even sections)
- This Vertical Divider MUST COME THROUGH TO FACE OF
VENT
- Vertical Divider is 1" Wide
- Vertical Divider is Tongue and Groove for Strength
- Openings are 5/16" wide. Louvers are 1/4"
wide. This may be adjusted slightly depending on duct opening size
|
- For All Vents with Duct Opening over 12" Vertical
dividers will be put in equal sections. Maximum length between
dividers is 12"
- Vertical Dividers can be to face or
"Hidden/Recessed"

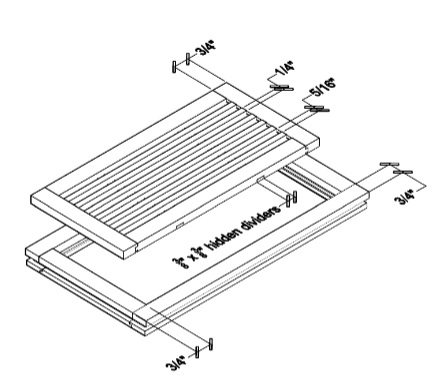

- Hidden Divider comes half way up the louvers.
It is 3/8" wide
- Openings are 5/16" wide. Louvers are 1/4"
wide. This may be adjusted slightly depending on duct size

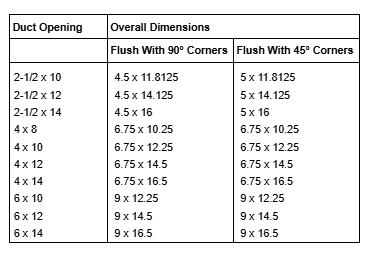

- Overall Dimension is usually 2" greater than Duct
Opening. Note rail size and opening size may be adjusted to meet the
Overall Dimension. CALL WITH QUESTIONS OR TO REQUEST CUSTOM WORK
|
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
|
Both of the above vents are for a 4 x
24 duct opening.
The Top Vent has two 12" sections of
louver with the divider coming through to the face.
The Bottom Bent has four 6" sections of
louver with the divider coming through to the face. |
 |
Vertical
Straight Slat
36" x 48" max (one piece)
48" + would
be continuous
in even sections, or sections to your specifications |
|
Shown Flush with Frame |
|
Available as......
Choose a link below to see specifications and sizes. Can be made custom
to any heating duct opening.
Available
in Oak, Maple, Cherry, Ash and many others. Click for
choices.
|
